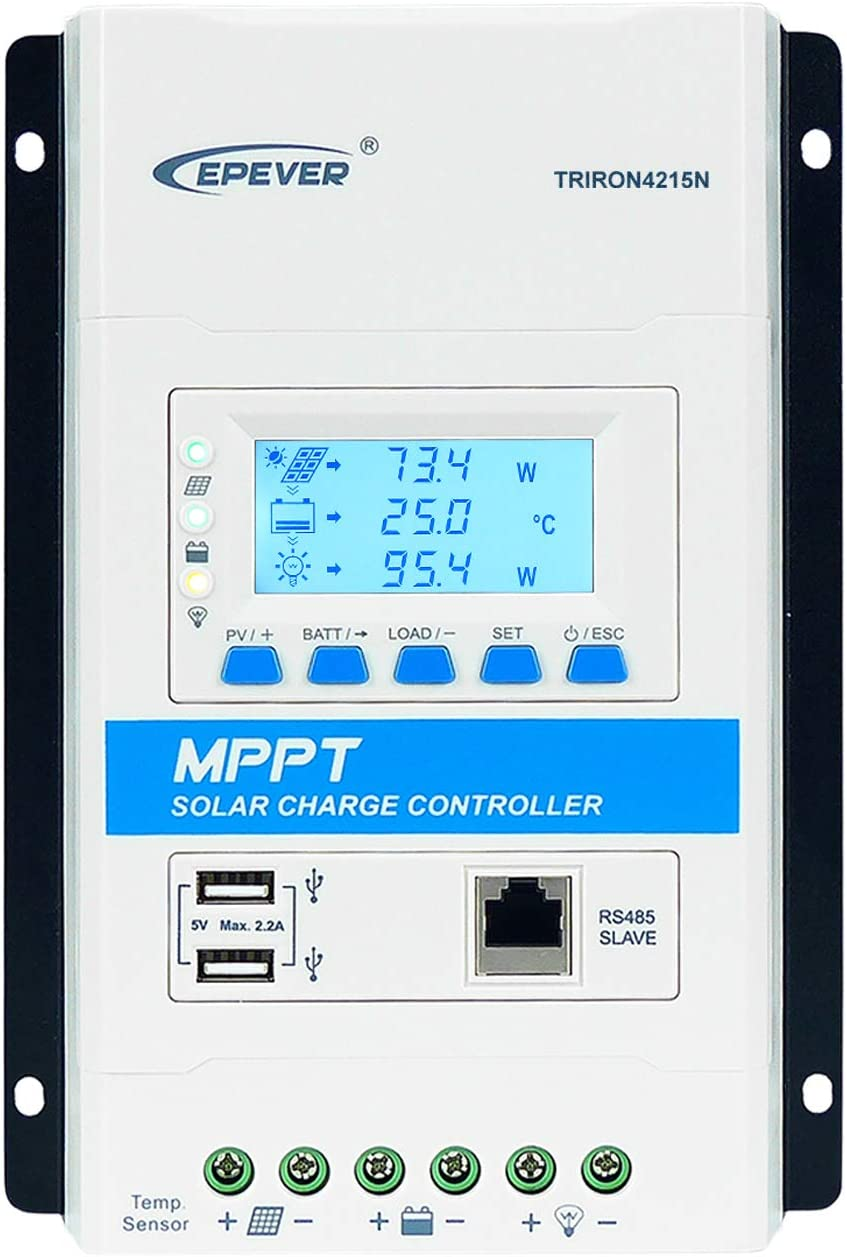

40A 12V 24V Auto Solar Charge Regulator Max PV 150V Solar Panel 520W/12V or 1040W/24V Charger for Sealed, AGM, Gel, Flooded and Lithium Battery (40A,Triron4215N)
Specification
| Style | MPPT 40A (Triron4215N) |
| Batteries required | No |
| Product Dimensions | 7.2 x 10.08 x 2.6 inches |
| Material | Gel |
| Item Weight | 4.99 pounds |
| Color | 40A,Triron4215N |
| Voltage | 24 Volts |
| Is Discontinued By Manufacturer | No |
| Brand | EPEVER |
| Manufacturer | EPEVER |
10.08 inches x 7.2 inches x 2.6 inches. Weight: 4.99 lb
Item Description
- EPEVER 40A MPPT solar charge controller 12V 24V Auto work , Max PV 150V ,Max PV input power 520W charge for 12V BAT or 1040W charge for 24V BAT, Common Negative Grounding. Upgraded version can be integrated with different display and interface modules to meet a variety of functional requirements. Can automatically identify and load the drivers of various modules.
- Negative groud designed of this 40 Amp modual mppt controller can be widely used for different applications, e.g., communication base stations, household systems, street lighting systems and field monitoring, RV solar system etc.
- (Upgraded version) Multiple battery types selection: Lead-Acid: Sealed, Gel(AGM), Flooded; Lithium: LiFePO4 (4s/12V; 8s/24V), Li (NiCoMn)O2 (3s/12V; 6s/24V) and User-defined. Dual 5V DC USB output interface of this mppt controller can charge your electronic devices directly.
- Real-Time energy statistic function, View/modify working parameters via APP or PC software via RS485 interface.(Optional). Four stages of charging(bulk, absorption, float, Equalization) and all-around electronic protection prolong the lifecycle of batteries.
- Three Indicator with different color show your PV/Battery/Load working Status more Intuitive; FIve Button to adjust and browsing system's parameters in more simpler way. Our US local engineer team could solve your questions about off-grid solar system .
Product Description
EPEVER MPPT Solar Charge Controller 40Amp,12V/24V DC auto work, Max PV 150V, Max solar panels input 520W charging for 12V battery system or 1040W charging for 24V battery system, Common negative grounding. Suitable for Lead-acid battery and Lithium battery .
Technical Data:
- Model: Triron4215N (Upgraded version)
- Rated charge and discharge current :40 Amp
- Nominal system voltage:12V/24V DC auto work
- Max. PV input power: 520W charge for 12V battery system or 1040W charge for 24V battery system
- Max. PV open circuit voltage:150V(at minimum operating environment temperature) ;138V(at 25℃ environment temperature)
- Grounding : Common negative
- Battery input voltage range : 8～32V
- MPP voltage range:V(BAT+2V)～108V
- Tracking efficiency : ≥99.5% , Max. conversion efficiency :98%
- Battery type : Lead-acid battery :Sealed, Gel(AGM), Flooded, User; Lithium battery: LiFePO4 (4s/12V; 8s/24V), Li(NiCoMn)O2 (3s/12V; 6s/24V), User.
- Working environment temperature : -25℃～+55℃(100% input and output)
- Storage Temperature Range: -30°C -- +70°C/-4°F -- 158°F
- Humidity range :≤95%,(N.C)
- Enclosure:IP30
- Controller Terminals:#6AWG(16mm2)
- Dimension:256.8*183*66.7mm ; Weight :1.85 KG
Package List:
- 1 X MPPT Solar Charge Controller (Triron4215N (UCS + DS2))
- 1 X Temperature sensor for controller（Model:RT-MF58R47K3.81A)
- 1 X Manual (English)
Note :EPEVER Triron-N series mppt solar charge controller is upgraded version, new designmodule, better funcations and advanced technology .
- Multiple LCD and LED display modules optional ,Master-slave interface module design,simultaneously view the controller and inverter operating data ;
- Compatible with more battery types ( lead-acid and lithium-ion batteries too );
- Dual USB design, supply DC power for electronic equipment ;
- Super Silent Design, More Safety Protection .
Our warehous in Chicago, Illinois, our professional engineer local team supply solar system solutions and tech-support services for you in time.
Protection function :
• PV over current protection • PV short circuit protection • PV reverse polarity protection • Night reverse charging protection
• Lithium battery low temperature protection• Battery over heat protection • Controller overheating protection
• Battery reverse polarity protection • Battery over discharge protection • Battery over voltage protection
• Load short circuit protection • Load overload protection
Product Features :
- Identify and load the drivers of various modules automatically.
- Support the hot swapping function without any damage for each module. Modular design for easy combination and replacement.
- Advanced MPPT control algorithm to minimize the maximum power point loss rate and loss time
- High quality components, perfecting system performance, with maximum conversion efficiency of 98%. Ultra-fast tracking speed and great tracking efficiency ≥99.5% .
- Automatic limitation of the charging power and current , Wide MPP operating voltage range.
- Compatible with lead-acid and lithium-ion batteries; Multiple load work modes .
- LCD and indicators to display operating data and status of the system. Real-time energy statistics function, Overheating power reduction function.
- Provide 5VDC power through the dual USB output interface to charge electronic devices.
Modular-Designed
| Display Modular (DS2)
| Interface Module (UCS)
NOTE: PC software & mobile APP need RS485 cable or wifi box to connect your device, RS485 cable and WIFI box doesn't include package.It is optional. | Heat Sink
|
Step: Connect solar system in the order of 1.battery--> 2. load--> 3.PV array ; and disconnect solar system in the reverse order 3.> 2.> 1.
- Battery must be connected first ! Never connect soalr panel array to controller Without/Before connect battery.
- DO NOT connect any inverter/wind/Alternator or Charger into the charge controller directly ! You should connect with battery and add fuse .
- If there is a long distance between the PV array and the controller or between the controller and the battery, larger wires can be used to reduce the voltage drop and improve performance. (Recommended wire size is only for reference.)
How to program for Lithium Battery？
- Via remote meter MT50 ;
- Via phone APP(Android or IOS) (Accessories needed: EPEVER-BLE-RJ45-D or EPEVER-WiFi-2.4G-RJ45-D ) ;
- Via PC software (Accessories needed RS485 cable :CC-USB-RS485-150U ) ,Software download website: EPever official website or read in manual .
- We have prepared Amazon listing video tutorials about how to use the controller and how to set parameters . More questions please feel free to ask vendor first .
| Add to Cart | Add to Cart | Add to Cart | Add to Cart | Add to Cart | ||
|---|---|---|---|---|---|---|
| Customer Reviews | 4.0 out of 5 stars 138 | 4.2 out of 5 stars 95 | 4.2 out of 5 stars 95 | 4.2 out of 5 stars 95 | 4.2 out of 5 stars 95 | 4.0 out of 5 stars 138 |
| Price | $34.98$34.98 | $99.99$99.99 | $95.99$95.99 | — | $149.99$149.99 | $35.99$35.99 |
| Rated Charge Current | For EPEVER Controllers | 20 Amp | 30 Amp | 40 Amp | 40 Amp | For EPEVER Controllers |
| Max PV Voltage | 100V | 100V | 100V | 150V | ||
| Max Array Solar Panel power | 2600W/12V; 520W/24V | 390W/12V; 780W/24V | 520W/12V; 1040W/24V | 520W/12V; 1040W/24V | ||
| Battery Type | Sealed / Gel(AGM) / Flooded;LiFePO4 / Li-NiCoMn / User | Sealed / Gel(AGM) / Flooded;LiFePO4 / Li-NiCoMn / User | Sealed / Gel(AGM) / Flooded;LiFePO4 / Li-NiCoMn / User | Sealed / Gel(AGM) / Flooded;LiFePO4 / Li-NiCoMn / User | ||
| Grounding | Common Negative | Common Negative | Common Negative | Common Negative | ||
| Controller Terminal | RS485 | 6AWG(16mm 2 ) | 6AWG(16mm 2 ) | 6AWG(16mm 2 ) | 6AWG(16mm 2 ) | RS485 |
| Recommended Cable Size | 10AWG(6mm 2 ) | 8AWG(10mm 2 ) | 6AWG(16mm 2 ) | 6AWG(16mm 2 ) |
