SPECIFICATIONS

Brand Name: BIQU

Origin: Mainland China

Item Type: Motherboard

Model Number: BIGTREETECH SKR MINI E3 V2.0

Product name: BTT SKR MINI E3 V2

Material: 4-layer PCB

Master Chip: STM32F103RCT6

Power input: DC 12/24V

Motor driver: TMC2209 UART mode

Feature: EEPROM, Flament breaking detection...

Motor Drive Interface: XM, YM, ZAM, ZBM, EM

For: Ender 3, Ender 5, CR10 Printer

Recommended software: Cura, Simplify3D, pronterface, Repetier-host, Makerware

Stock: In stock

MINI E3 V2.0 Kit:

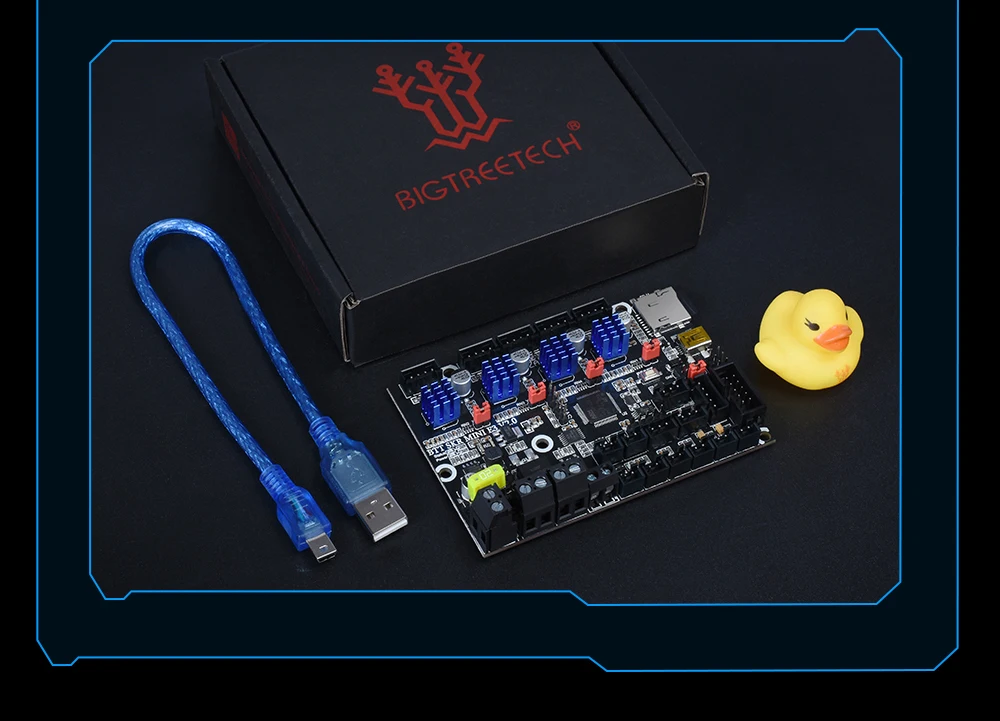

1PC SKR MINI E3 V2.0 Board

1PC TFT35 E3 V3.0 Touch Screen

MINI E3 V1.2 Kit:
1PC SKR MINI E3 V1.2 Board

1PC TFT35 E3 V3.0 Touch Screen

Introduction:

BTT SKR MINI E3 V2.0 is a customized motherboard for Ender3 printer launched by the 3D printing team of Shenzhen BIGTREE technology co., LTD., which can perfectly replace the motherboard of the original Ender3 printer.

More detailed about SKR MINI E3 V2.0 you can visit this website:

https://github.com/bigtreetech/BIGTREETECH-SKR-mini-E3/tree/master/hardware/BTT%20SKR%20MINI%20E3%20V2.0BIGTREETECHSKR MINI E3 V2.0

A motherboard specially tailored for Ender3 printers, perfectly replacing the original Ender3 printer motherboardDIMENSIONSADVANTAGES

Main control chip

ARM Cortex-M3 series STM32F103RCT6&RCT7 chip with 32-bit CPU 72MHZ

Onboard EEPROM: 24C32Double Z-axis interface

Add parallel double Z-axis interface

Enhanced stability

The UART communication port driven by TMC2209 uses hardwareUART port (One drag four),enhance stabilityCompatibility

Compatible models increase, suitable for Ender3, Ender 3Pro

Ender5,CR-10

Better protectionand safety design

Increase the distance between the driving chip and thecomponents to avoid the trouble caused by the heat sinkSupport more function expansion

Support BLtouch, filament detection, power-off resume, automaticshutdown (PS-ON),etcAdd 5V power supply

5V power supply with BLtouch, TFT andRGB interfaces is optional.

Use BIGTREETECH DCDC5V V1.0module + 5V power supply

Increase the board layer to4 layers

lmprove heat dissipation signal function and

anti-interferenceBETTER THERMAL PERFORMANCE

Increase the heat dissipationarea of the back driver and strengthentheheat dissipation capacity

HOT BED MOS TUBE

The hot bed MOS tube adopts WSK220N04, lowRDS-ON heat dissipationarea, reduce heat generationPOWER CHIP

Use MP1584EN power chip,support12-24V power input, maximumoutput current up to 2.5A

Two CNC

Fan interface

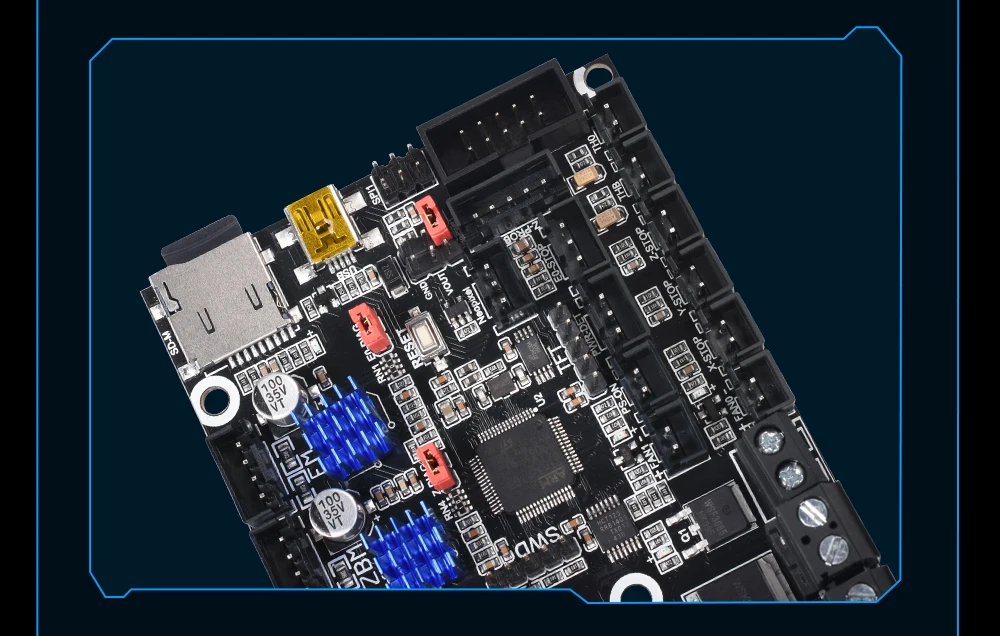

Change an original FrequentFan to a CNC Fan, User-friendlyOnboard Sensorless homing function

You can use this function by

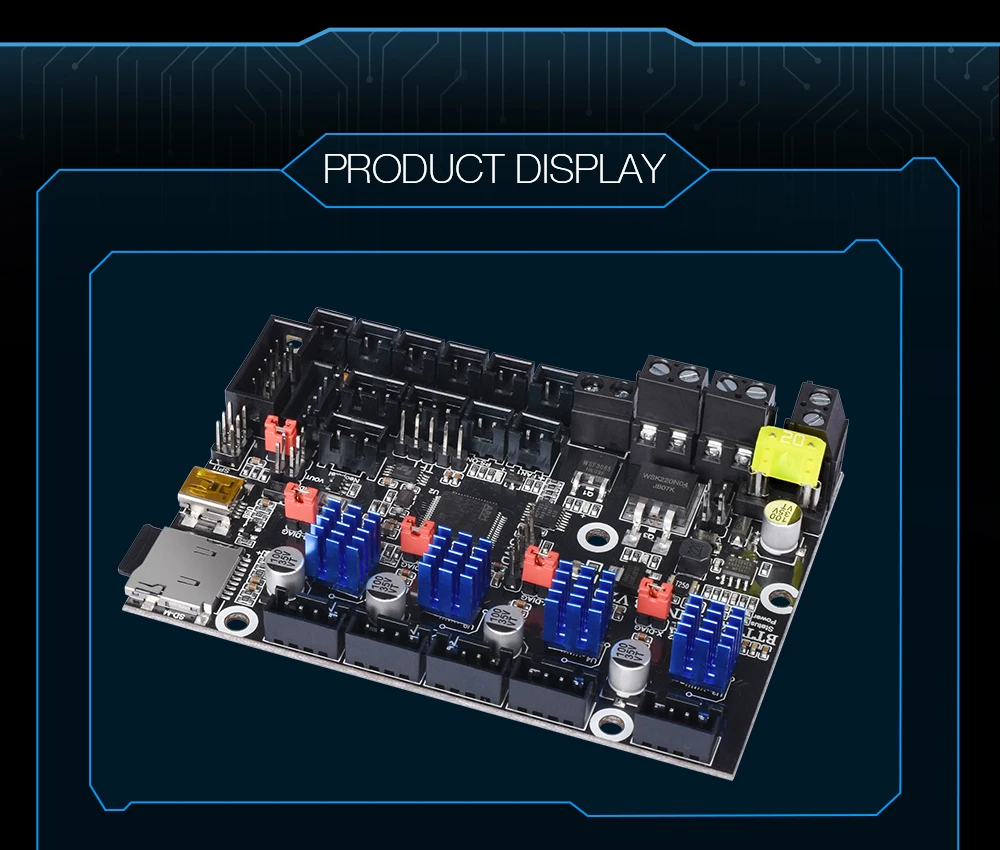

plugging in the jumpcap, easy and convenientPRODUCT DISPLAY
